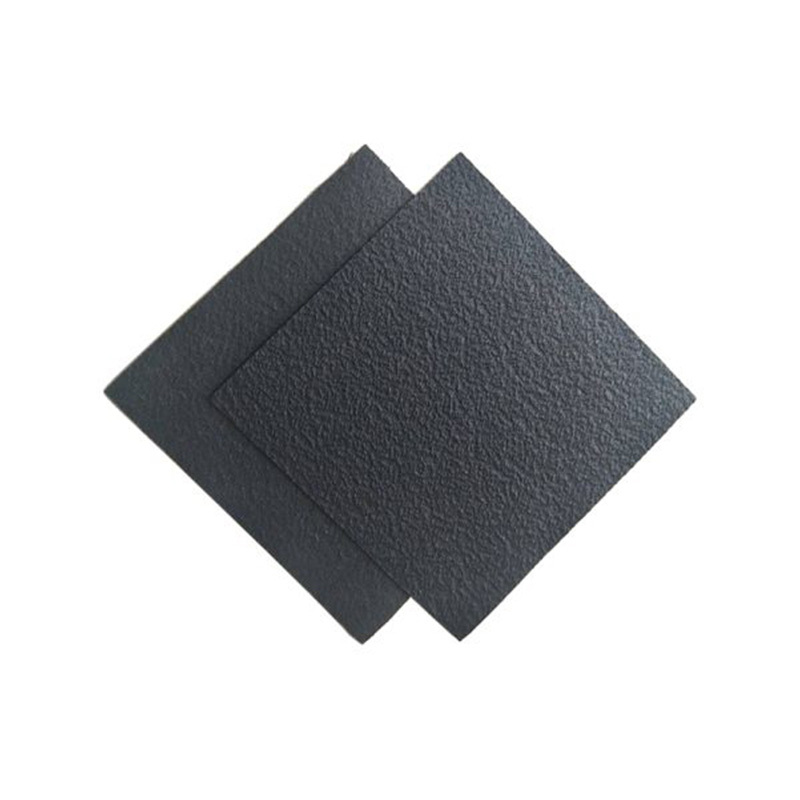

Textured HDPE geomembrane

Textured HDPE geomembrane is a new type of anti-seepage material, which is divided into single-sided texture and double-sided texture. Textured HDPE geomembrane effectively increases the friction coefficient and anti-slip function, and is more suitable for steep slope and vertical anti-seepage, improving project stability.

Keywords:

HDPE Geomembrane

Classification:

E-Mail:

Return to previous page

Description

Product Description:

Parameter:

HDPE geomembrane Technical Data（GB/T 17643-2011 GH-2型）
Item	Specification
Thickness	0.75mm	1.0mm	1.25mm	1.5mm	2.0mm	2.5mm	3.0mm
Density	≥0.940
Tensile Yield Strength（TD/MD）	≥11	≥15	≥18	≥22	≥29	≥37	≥44
Tensile Strength at Break（TD/MD）	≥20	≥27	≥33	≥40	≥53	≥67	≥80
Elongation at Yield（TD/MD）	≥12
Elongation（TD/MD）	≥700
Angle Tear Load（TD/MD）	≥93	≥125	≥160	≥190	≥250	≥315	≥375
Puncture Strength	≥240	≥320	≥400	≥480	≥640	≥800	≥960
Carbon Black Conteat	2.0-3.0
Oxidation Induction Time	≥100

Application description:

landfill, tailings pond, reservoir, waste treatment plantanti-seepage, farm manure storage and fermentation, freshwater aquaculture pond, roadbed anti-seepage, etc.

Specification description：

Taiji HDPE geomembrane production thickness is 0.7mm-3.0mm, the maximum production width is 6m, the length is 50m-100m, and the size specifications can be customized as needed.

FAQ:

Q1: What is your delivery time?

A1: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, its according to guantity.

Q2: Where is vour company?

A2: Dezhou shandong province, China and if you want to coming,please call me ,I will arrange yourschedule.

Q3: Are vou trading company or manufacturer?

A3: We are manufacturerSo wo have a lower price than trading company.

Q4: What is vour delivery method?

A4: T/T. Western Union, PAYPAL..

Q5: Do you provid samples?Is it free or extra?

A5: Yes, we can offer the sample for free charge but do not pay the cost of freigh.

Q6: What is your terms of payment?

A6: Payment<=8000USD,100% in advance.Payment>=8000USD, 30%/50% T/T in advance, balance before shippment. If you have another question,please to contact me.

Smooth HDPE Geomembranes

Waterproof geomembrane

Certificate

Occupational Health Management System Certification

Factory Workshop

Customer Visit

FAQ

What is HDPE geomembrane?

The full name of high-density polyethylene geomemofilm, composed of high-density polyethylene and carbon black, and add antioxidants, ultraviolet absorbers, and stabilizers, etc., so it has a high strength corrosion resistance, generally black, also known as black film, mainly used in the field of seepage prevention, corrosion prevention, pollution prevention.

What is the thickness of HDPE geomembrane?

The most common thicknesses are: 0.3mm, 0.5mm, 0.7mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm.

Packaging size of geomembrane

The most common size of each roll of geomembrane is 6m*50m and 5.8m* 50m, such packaging specifications are usually 300 square meters a roll, 6m*100m and 5.8m* 100m, such packaging specifications are usually 600 square meters a roll, and can also be customized on demand.

Weight per roll of common geomembrane thickness

The weight of a 0.5mm roll is about 143kg, the weight of a 0.8mm roll is about 232kg, the weight of a 1.0mm roll is about 285kg, the weight of a 1.5mm roll is about 425kg, the weight of a 2.0mm roll is about 570kg, and the above weight is 300 square meters of a roll specification.

How to transport HDPE geomembrane?

HDPE geomembranes are usually transported by sea, the more the number, the lower the unit transportation cost, and the more HDPE geomembranes are loaded and transported in 40-foot containers.

About mode of transport

Our welding machine mainly uses federal Express for transportation, geomembrane because it is a heavy cargo, the value of the goods is relatively low, if the number is not large, can only use sea LCL transportation, but this way leads to high freight, because the fewer the number of geomembrane, the higher the unit transportation cost, the more the number, the lower the unit transportation cost, so it is recommended to purchase geomembrane on a large scale. The use of sea FCL transportation, or the customer has their own freight forwarder in China, so that the freight will save a lot.

HDPE geomembrane container loading capacity

Because HDPE geomembranes are mostly loaded with 40-foot high containers, taking 40-foot high containers as an example, 0.5mm thick can be loaded with about 185 rolls, 0.8mm thick can be loaded with about 110 rolls, 1.0mm thick can be loaded with about 82 rolls, and 1.5mm thick can be loaded with about 60 rolls. The 2.0mm thickness can hold about 40 rolls, and the above specifications are 300 square meters a roll.

HDPE geomembrane service life

0.5mm geomembrane can be used for more than 10 years in the case of strong ultraviolet light, 1.0mm geomembrane can be used for more than 15 years, 1.5mm geomembrane can be used for more than 25 years, 2.0mm geomembrane can be used for more than 35 years.

Standard produced by Shandong Taiji New Material

Shandong Taiji new materials production standards are in line with the GB standard and the highest ASTM standards, Shandong Taiji new materials adhere to the use of imported brand raw materials, resolutely do not use recycled materials. As a geomembrane producer, with its own factory, it will provide competitive ex-factory prices. Is a trusted geomembrane liner manufacturer.

How to distinguish the geomembrane of new materials from that of recycled materials

The appearance of the virgin material HDPE geomembrane is smooth, shiny and good flexibility, while the appearance of the recycled material HDPE geomembrane is black, with rough material points and poor flexibility.
